RIPPA R15-4

R15-4 PRO Mini Excavator – Built for Tough Jobs - Backed by DiggerDaddy

1.5 Ton Class • Kubota Diesel Power • Smart Safety Upgrades

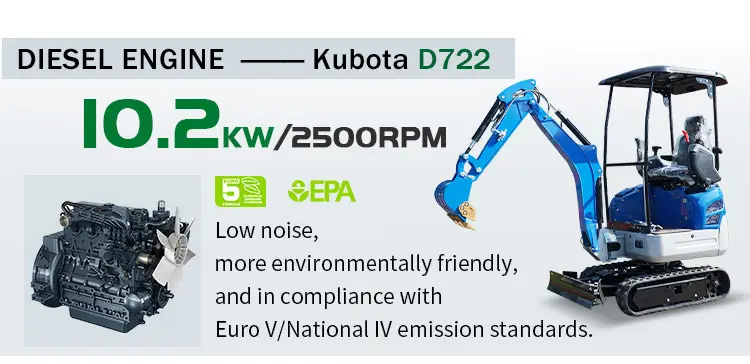

Powered by a Reliable Kubota D722 Diesel Engine

• Engine: Kubota D722, 10.2 kW (13.7 HP) @ 2500 RPM
• Emissions: Compliant with Euro V / U.S. Tier IV standards
• Low noise, low vibration, and excellent fuel efficiency
• Proven performance in long-run, high-load operations

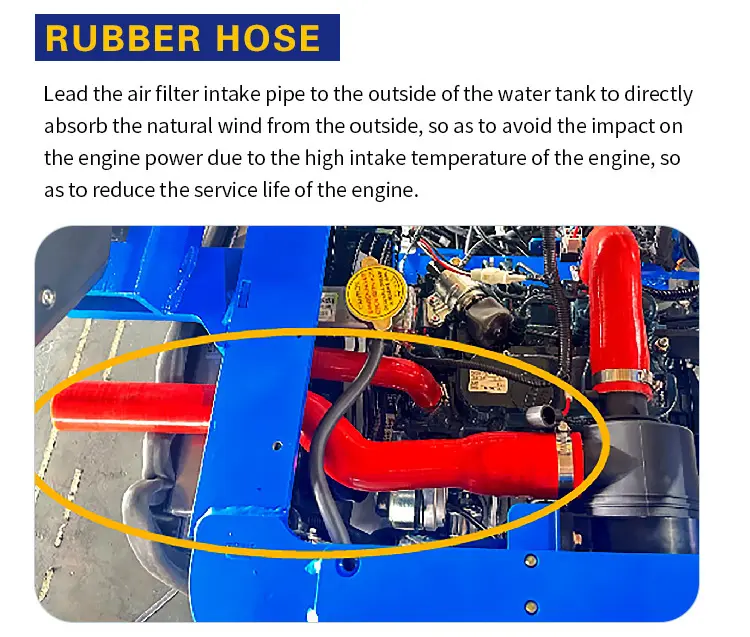

Smart Cooling = Longer Life

The rubber hose cold-air intake system directs fresh air around the water tank into the intake system, reducing engine heat buildup and extending service life.

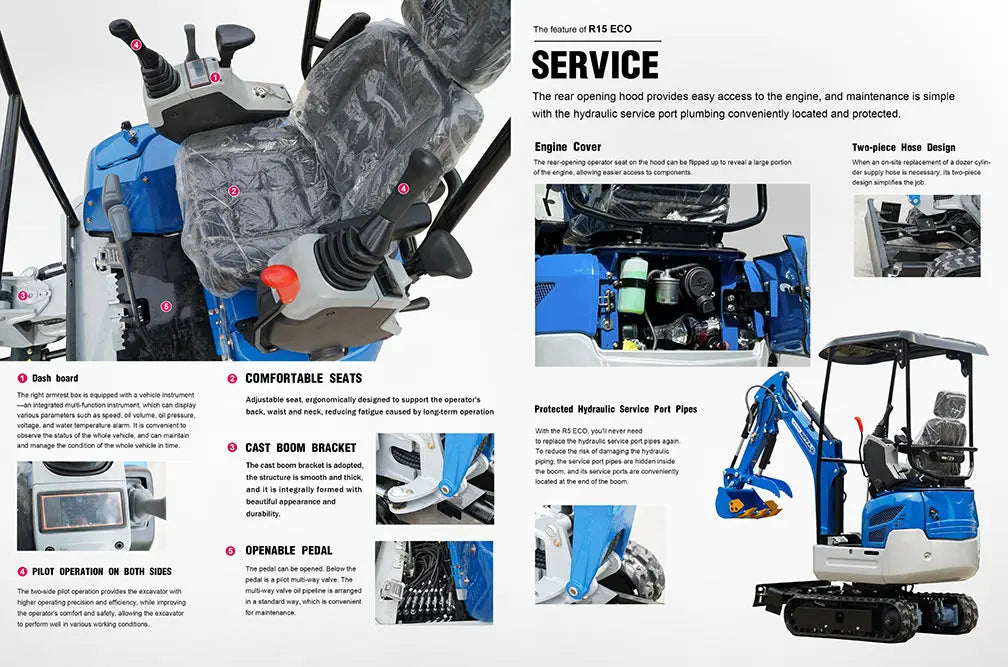

Built with Safety and Comfort in Mind

• Adjustable Safety Seat – ergonomic and height-adjustable
• Pilot Lock Control System – prevents accidental movement during idle
• Double-side joystick controls – smooth, responsive, and easy to operate
• Multi-function gauge cluster – speed, oil level, voltage, temp, and more

Exclusive Features That Set the R15 Apart from the crowd

• ✅ Top protection canopy against falling debris
• ✅ Real 1.5 ton with added counterweight for superior stability
• ✅ Load-sensing hydraulic valves – adjust flow to demand, increasing efficiency
• ✅ 2-speed travel motors – high and low speed walking mode

🛠️ More Reasons to Choose the R15-4

• Rear-mounted boom cylinder – protected from damage
• Retractable track width: 35" (890 mm) to 46.8" (1190 mm)
• Swing boom (Side Swing): Ideal for working beside walls or fences
• Steel blade with reinforced pin bracket – rugged and foldable

Specs Snapshot

• Max Dig Depth: 6 ft (1,833 mm)
• Max Reach: 10.6 ft (3,233 mm)
• Max Dump Height: 7.4 ft (2,247 mm)
• Weight: ~3,300 lbs (1,500 kg)
• Fuel Consumption: ~1.3–1.5 L/hr
